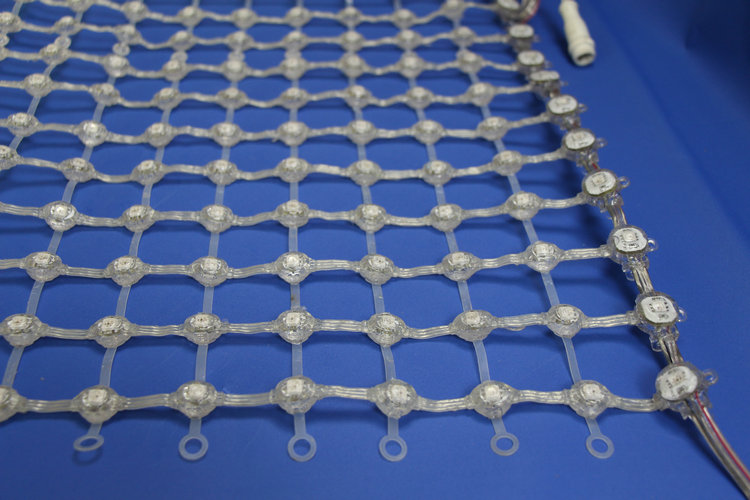

P30 -P100 LED Mesh Flexible Video Screen for outdoor/indoor 980mm*980mm

-New design with soft and grid structure, can be folded and rolled
-Easy Storage & Transport
-Easy to install,simple and flexible
-Can display various videos,cartoon,text,picture and so on
-Embedded wireless control technology Transfer Data via SD Card or Live From your PC
-Our own grid Software gives you the ability to edit & Publish Endless content on the Screen

PLEASE CHOOSE THE RIGHT MODEL SCREEN IN OPTIONS

Specifications for P30/P40/P50/P60/P80/P100

P is the so called Pixel Pitch or Pixel Density

-Pixel pitch: P30mm
-Max power: ca. 500W/unit
-Unit size: 0.96x0.96m
-Resolution: 32x32
-Color: full color
-Brightness: 2400cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 2,6kg/㎡

-Pixel pitch :P40
-Max power :ca. 380W/unit
-Unit size:1.28x1.28m
-Resolution:32x32
-Color: full color
-Brightness: 2000cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 2,3kg/㎡

-Pixel pitch :P50
-Max power :ca. 250W/unit
-Unit size:1.6*1.6m
-Resolution:32x32
-Color: full color
-Brightness: 1800cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 2,0kg/㎡

-Pixel pitch :P60
-Max power :ca. 175W/unit
-Unit size:1.92*1.92m
-Resolution:32x32
-Color: full color
-Brightness: 1500cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 1,0kg/㎡

-Pixel pitch :P80
-Max power :100W/unit
-Unit size:2,56*2,56m
-Resolution:32x32
-Color: full color
-Brightness: 1000cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 0,8kg/㎡

-Pixel pitch :P100
-Max power :ca. 80W/unit
-Unit size:1,6*3,2m
-Resolution:16x32
-Color: full color
-Brightness: 700cd/sqm
-Input voltage: DC5V
-Protective level: IP65
-Weight: 0,6kg/㎡

Package Content.:

• 1PCS LED MESH 980mm*980mm
• 1PCS matching Controll Unit SD & LIVE Controll fom PC
